 Larger View |
MLA8046065

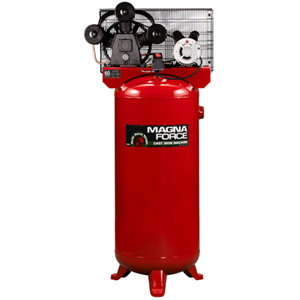

Magna Force products are designed exclusively for the heavy duty needs of the mechanic shop, livestock operation and service truck. Featuring extra heavy duty components, these air compressors are built to last under the toughest, most demanding conditions.
|
|
|
FEATURES
|
- High air flow, single stage
- 14 CFM @ 90 PSI - Cast iron three cylinder pump
- Heavy duty, 240 volt induction motor for maximum performance and efficiency
- 155 PSI max pressure for optimum tool performance
- Large capacity, 60 gallon ASME air receiver provides more air for longer run times on air tools
- Full metal belt guard. Shipped with synthetic oil for optimum performance and long life.
|
|
SPECS
Tank
- Size: 60 Gallons
- Style: Vertical Stationary
- ASME Approved: Yes
Compressor Pump
- Style: Oil Lubed Belt Drive Single Stage
- Construction: Cast Iron
- Lubrication: Oil Lubricated
CFM
- 16.1 CFM's @ 40 PSI
- 14 CFM's @ 90 PSI
Pressure
- Operating Pressure: 125-155 PSI
- Maximum Pressure: 155 PSI
Power
- Source: Electric
- Horsepower: 4.7
- Engine Manufacturer:
- Volt/Amp/Phase: 240/20/1
Sizing
- Dimensions (LxWxH):
38 x 29 x 76
- Weight: 250 Pounds
- Limited Warranty: 2 year limited
- Certification: CSA,UL
Accessories
|
|
FEATURED ACCESSORIES
012-0057CT: 50' X 3/8" Blue 300 PSI PVC Air Hose
|
